Schatten P2 Piano Pickup



          Adheres To The Soundboard...



      Due to the size and construction of pianos, we felt that the best balance and accuracy of sound reproduction could only be achieved by using two separate transducer sensing units.

     As we did with our hammered dulcimer pickup system, we've taken our incredibly responsive "dual element system" and applied it to our piano pickup to give you unsurpassed response and faithful, natural sound quality.
     The P2 pickup system mounts quickly and easily to the underside of the soundboard on grand pianos and to the back of the soundboard on uprights with supplied double sided tape.

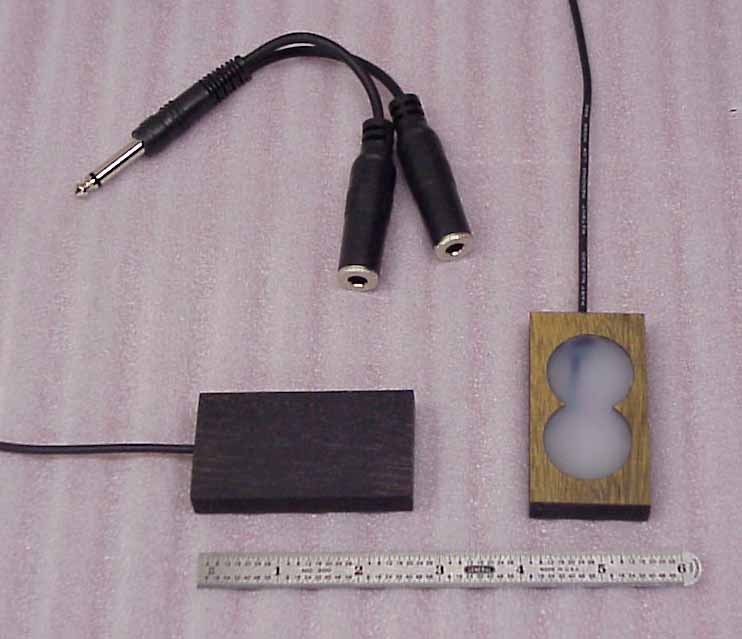

     Each transducer unit contains 2 separate piezos working in tandem to enhance sound quality and reduce the possibility of feedback. The units are strongly built and measure approximately 2 3/4" in length, 1 1/2" in width, and 1/2" in thickness.

     Each transducer is prewired to a 10 foot shielded Mogami cable with a heavy duty 1/4" output plug for stereo configurations. For Mono applications, a 1/4" 'Y' adapter is included.This pickup has been designed to operate properly and sound terrific without the use of a preamp when plugged into any 'normal' amp (guitar amp, bass amp, etc.).

  This pickup has been designed to operate properly and sound terrific without the use of a preamp when plugged into any 'normal' amp (guitar amp, bass amp, etc.). As with any pickup, the sound can be further enhanced with an outboard preamp. If you require the added ability to be able to plug directly into a P.A. or mixer then you may wish to add our  Mini Pre belt clipable preamp to your pickup system.





Buy Now




P2 Piano Pickup In Stock Price Quantity

P2 Pickup Yes $199.95
Accessories for the P2's
Schatten Mini Pre Acoustic Instrument Preamp more Yes $69.95


Canadian Customers
Click Here

Prices shown are in US funds




Details




Clean, clear sound reproduction.
This pickup has been designed to operate properly and sound terrific without the use of a preamp when plugged into any 'normal' amp (guitar amp, bass amp, etc.). As with any pickup, the sound can be further enhanced with an outboard preamp. If you require the added ability to be able to plug directly into a P.A. or mixer then you may wish to add our  Mini Pre belt clipable preamp to your pickup system.



Pictures
























Technical





About Pickups and Amplification


Terminology

Passive Pickup - A piezo pickup.

Impedance - To simplify things as much as posssible we'll say that impedance refers to the range in which an amplifying device can 'hear' a pickup plugged into it.

Preamp - A device specifically designed for use with piezo pickups that increases the signal strength and lowers the impedance of a passive pickup.

Active Pickup - A piezo pickup with an attached preamp.

Microphone Preamp - a device that may be built into P.A.systems and mixers that is designed to work with microphones. These units will not generally work with passive pickups.

'Normal' Electric Guitar Amps: A passive pickup has an impedance of approximately 2 mega ohms (2 million ohms) which virtually all 'normal' electric guitar amps can generally handle without issue.

 'Acoustic' Amps: may or may not require the use of a preamp with a pickup and that will depend upon whether or not there is a special built in preamp section to that amp that specifically allows for the choice in plugging in either a passive (non-preamped) or active (preamped) pickup. This choice is quite often in the form of pushbutton on the amp's control panel. Many acoustic amps show a selection that may indicate the choice of 'high impedance' and 'low impedance'.

Low impedance in these instances usually indicates that in this range the amp will handle an impedance of 1000 ohms or less - which will allow active pickups with preamps to be used.

High impedance in these instances may indicate an allowable impedance into the 2 or 3 mega ohm range - which will allow passive pickups to be used. Or it may indicate a maximum input impedance allowed of  20,000 ohms or less - which will handle magnetic electric guitar pickups but not passive pickups. You should carefully read the technical specifications of your acoustic amp in order to see what it will do.

P.A. Systems, Mixers: all of these units will require the use of a preamp between themselves and a passive pickup. Microphone preamps built into P.A.'s and mixers are not designed for use with passive pickups and will not work properly.

Computers: Due to the vagaries and variables inherent in the sound cards found in computers, the only thing that we can advise is that a preamp will almost certainly be necessary.
